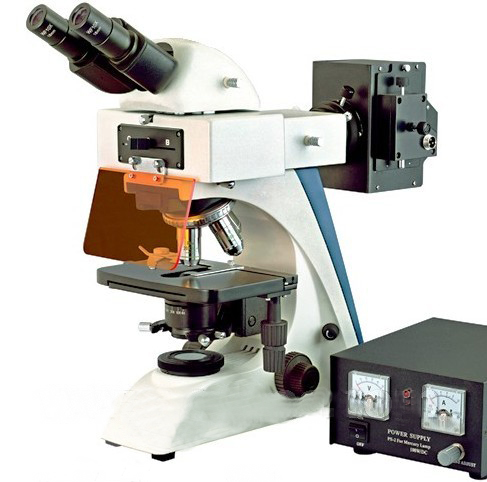

MF200 Fluorescence Microscope
MF200 Fluorescence Microscope Features: --Infinityoptical system for fluorescence observing --100W Mercury light house --Reflecting & transmitting light source available Detail Specification: Specification MF200-A MF200-B Head Binocular, inclinded 30°, interpupillary distance 50-75mm Eyepiece WF10X/20mm Objective Infinity PlanFluorescent Objective4x, 10x, 20x(S), 40x(S), 100x(S, O) Nosepiece Quintuple Focusing Coaxial coarse and fine focusing knob Stage Double layer mechanical, size 190x140mm, moving range 78x55mm Condenser AbbeN.A.1.25 with aperture iris diaphragm Fluorescence Fluorescence Illuminator B, G Fluorescence Illuminator UV, V, B, G 100W Mercury Bulb House 100W Mercury Bulb Power Source Centering Objective Spare parts: 110V/220V 100W Mercury Bulb 1 pc, 5A Fuse 1 pc Filter Blue Light source Kohler6V 20W halogen lamp with brightness control, 2pcs spare fuse Optional Accessories Item No. Eyepiece WF16x/13mm A020010 WF10x/18mm, with micrometer 0.1m/Div A020011 CCDAdapter CCD Adapter 0.5x A020020 CCD Adapter 1.0x A020021 Digital Camera Adapter For CANON digital camera A020030 For NIKON digital camera A020031 For OLYMPUS digital camera A020032
Features:
--Infinityoptical system for fluorescence observing --100W Mercury light house --Reflecting & transmitting light source available
Detail Specification:
Specification
MF200-A
MF200-B
Head
Binocular, inclinded 30°, interpupillary distance 50-75mm
Eyepiece
WF10X/20mm
Objective
Infinity PlanFluorescent Objective4x, 10x, 20x(S), 40x(S), 100x(S, O)
Nosepiece
Quintuple
Focusing
Coaxial coarse and fine focusing knob
Stage
Double layer mechanical, size 190x140mm, moving range 78x55mm
Condenser
AbbeN.A.1.25 with aperture iris diaphragm
Fluorescence
Fluorescence Illuminator B, G
Fluorescence Illuminator UV, V, B, G
100W Mercury Bulb House
100W Mercury Bulb Power Source
Centering Objective
Spare parts: 110V/220V 100W Mercury Bulb 1 pc, 5A Fuse 1 pc
Filter
Blue
Light source
Kohler6V 20W halogen lamp with brightness control, 2pcs spare fuse
Optional Accessories
Item No.
WF16x/13mm
A020010
WF10x/18mm, with micrometer 0.1m/Div
A020011
CCDAdapter
CCD Adapter 0.5x
A020020
CCD Adapter 1.0x
A020021
Digital Camera Adapter
For CANON digital camera
A020030
For NIKON digital camera
A020031
For OLYMPUS digital camera
A020032
