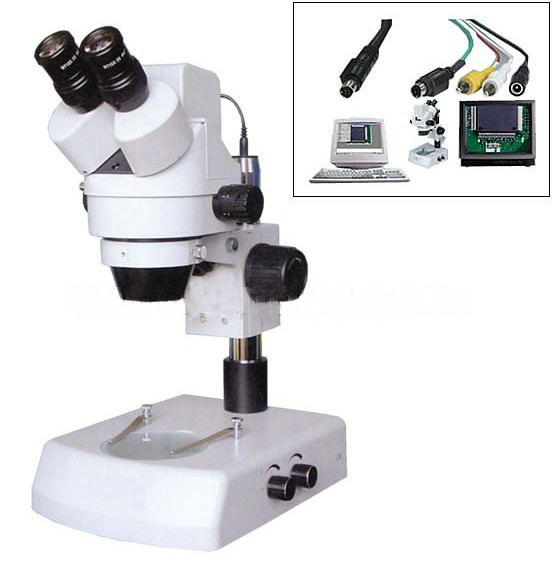

XHD-100 Digital Stereo Microscope



★ Inherit all function from XH series microscope.
★ Support scanner and digital still camera (TWAIN Standard).
★ Support Twain interface and VFW inerface frame grabber;
★ Support WIN95982000AND WINXP operation system(Both English and Chinese)
★ Support color adjustment, image transform, morphological processing, image enhancement.
★ Support 24 bit true color image capture.Support RGB, CMY, HSV, YUV color models processing and analysis;
★ Support Undo, Redo;
★ Support geometry parameters measurements;
★ The analysis results can output to html files or clipboard.Print can be performed using specified format or report.The image can be printed with photo  quality.
★ Support:1) Analog: RCA, S-Video signal wire;
 Digital: USB data line, RCA, S-Video signal wire.

Speicification	XHD-100
Head	45° inclined, 360° rotatable binocular head.
Eyepiece	Wide filed, high-eyepoint eyepiece-WF10X20mm.
Eyepiece Tube	Both diopter adjustment of range ±5mm
Objective	Zoom objective magnification 0.70X-4.5X
Lamp-house	Top, bottom lamp(12V/15W Halogen lamp)
Power	12V
Signal	1) Analog: RCA, S-Video signal wire;
	2) Digital: USB data line, RCA, S-Video signal wire.
Working Distance	100mm.
Magnification Range	7X-45X or 3.5X-180X (Use auxiliary objective)
Inter-pupillary Rang	55-76mm.



CCD MODEL	NTSC	PAL
Specification
Pick-up Device	1/3"	1/3"
Horizontal Resolution	450TV Line	450TV Line
Pixels	(H)768 * (V)494	(H)712 * (V)582
Scanning System	525lines, 60field/second	625lines, 50field/second
White Balance	Auto white balance and hand white balance
Back Light Compensation	Auto
Signal/Noise Ratio	more than 46db
Gamma Characteristic	0.45
Minimum Illumination	3 lux
Input Voltage	12V DC(9V~14V)
Power Consumption	1.85W or less



Software Environment
CPU	PII 200 or above
RAM	64M or above
Hard Disk Space	300M or above
System	Windows 98me2000XP
Other	CD driver, USB port
